Last Updated: IOn Jul 18, 2025
The UES100-7P is a gigabit unmanaged PoE switch equipped with 4 x 10/100/1000Base-T PoE+ ports, 2 x 10/100/1000Base-T RJ45 ports, and 1 x 1000Base-X SFP port. This switch is ideal for small offices and businesses. It powers up 802.3af/at-compliant devices such as Q Link access points, cameras, and VoIP phones without any configuration needed, delivering a true plug-and-play experience without requiring technical expertise.

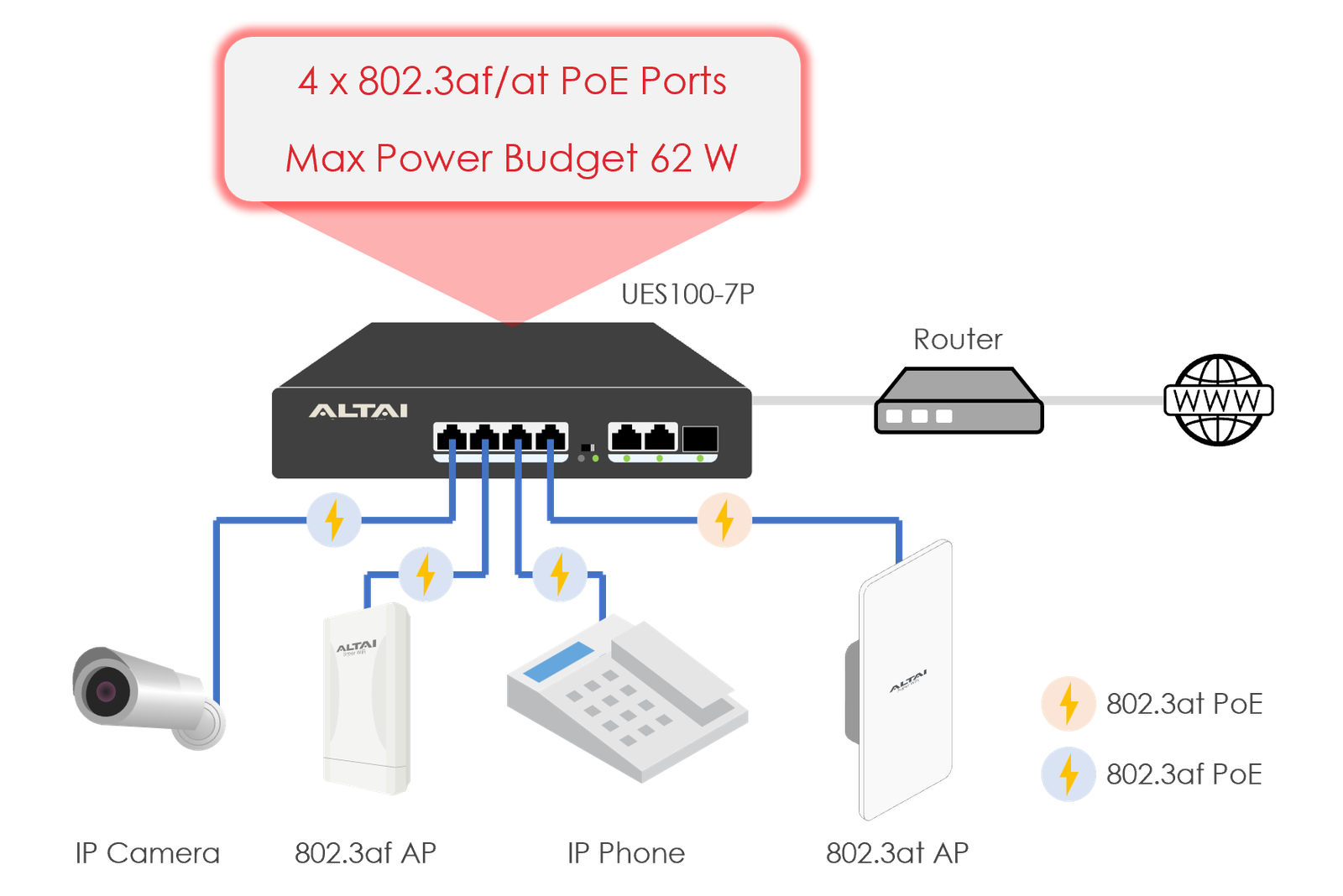

The switch supports 802.3af/at Power over Ethernet to provide electrical power of up to 30 watts, along with data, to remote devices over a standard twisted-pair Ethernet cable. It supports four 1GbE PoE ports, with a total power budget of 62W.

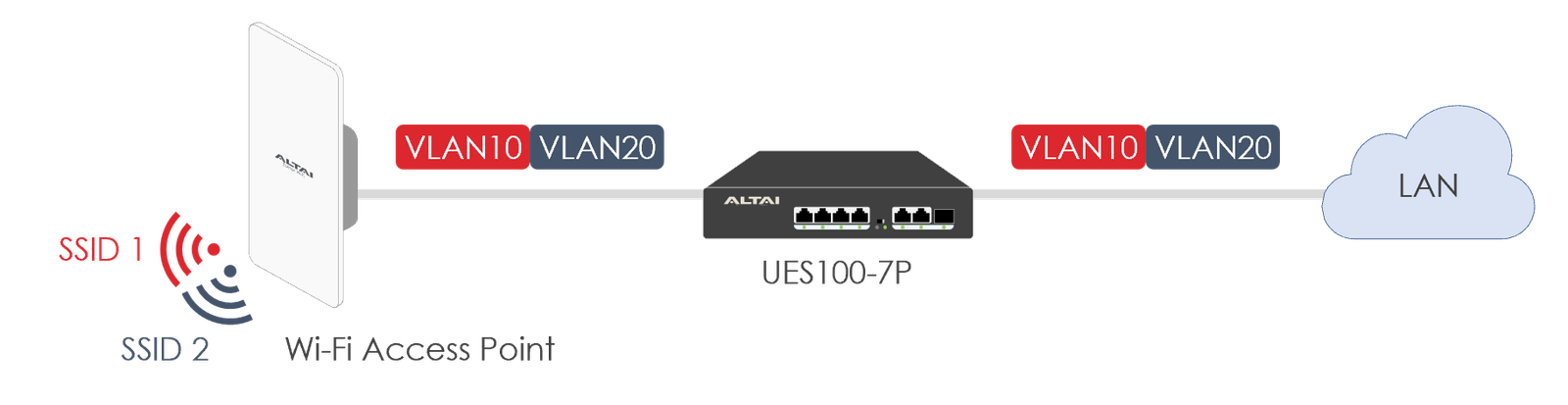

The UES100-7P supports VLAN passthrough, allowing it to forward VLAN data frames without discarding them.

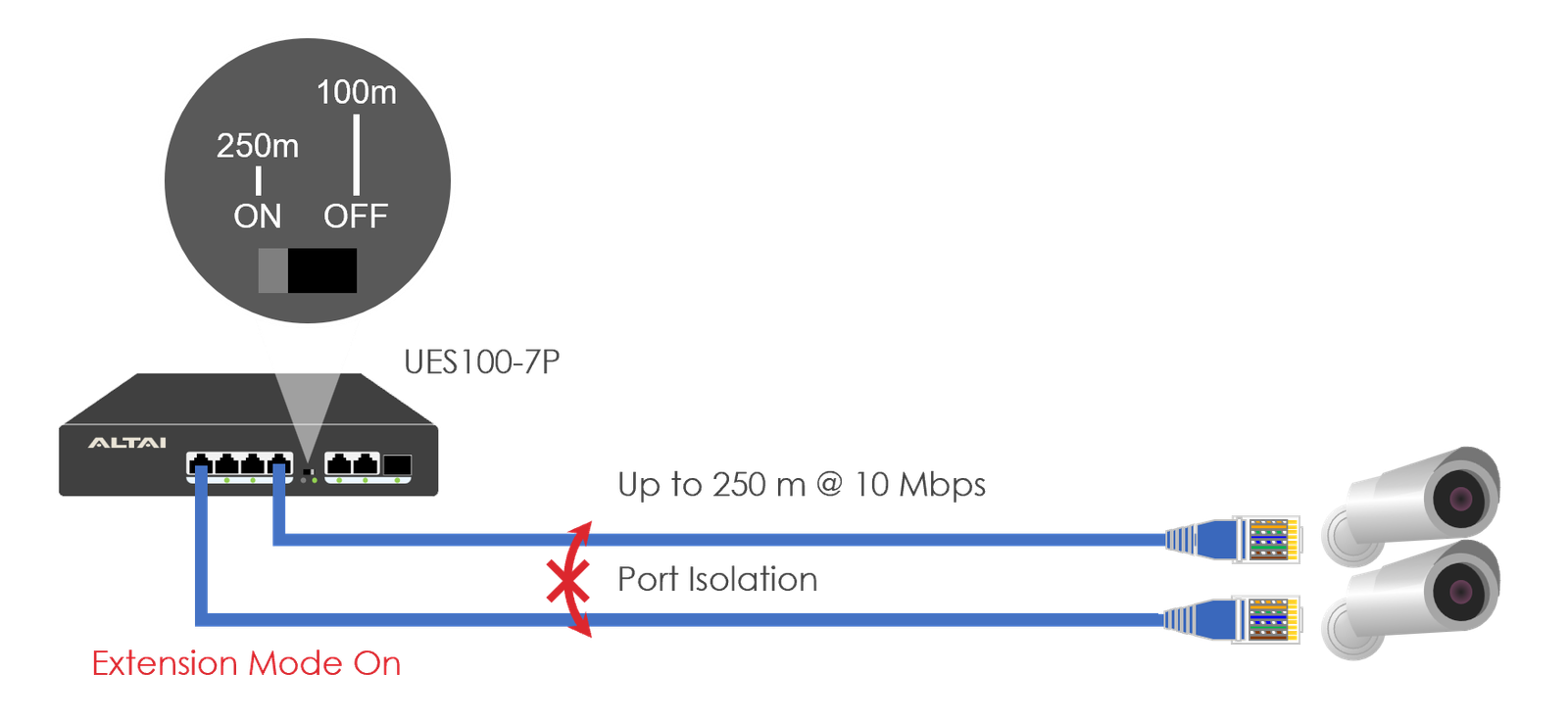

The UES100-7P supports Ethernet extension mode. When the switch is toggled on, the data transmission range can be extended up to 250 meters along the standard twisted-pair Ethernet cable, while the rate will be limited at 10 Mbps. This feature is ideal for low-bandwidth applications, such as IoT devices, in scenarios requiring longer cable lengths. In addition, the 4 x PoE ports will be isolated to each other to suppress broadcast storms and improve network performance.
| Copper Ports |
4 x 10/100/1000 Mbps RJ-45 Ports (PoE) 2 x 10/100/1000 Mbps RJ-45 Ports (Data) |
| SFP/Mini-GBIC Slots | 1 x 1 Gbps SFP Uplink Port |
| Surge Protection | 4 kV 8/20 us |
| Enclosure | IP30 |
| Installation | Desktop Mount |
| LED |
Power: Green Network Link Per RJ-45 Port: Green Link/Activity Per SFP Port: Green Port Isolation: Green |
| Dimensions | 200 (L) x 130 (W) x 40 (H) mm |
| Net Weight | 0.6 kg |
| Input Power | Single Power Supply: AC100-240 V, 50-60 Hz, 1.0 A |
| AC Connector | IEC-320 C14 |
| Power Consumption |
Max. 3 W (Without PoE) Max. 65 W (With PoE) |
| Architecture | Store and Forward |
| Switching Capacity | 14 Gbps (Non-Blocking) |
| Packet Forwarding Rate | 10.4 Mpps @ 64 Byte |
| MAC Address Table | 2 K |
| Buffer Memory | 2 MB |
| Jumbo Frame | 9.2 KB |
| Standards | IEEE 802.3af/at |
| PoE Ports | Port 1 to 4 |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Max Power Per Port | 30 W |
| Total Power Budget | 62 W |
| Operating Temperature | -20 ~ +55 °C |
| Storage Temperature | -40 ~ +80 °C |
| Operating Humidity | 5 to 90% (Non-Condensing) |
| Storage Humidity | 5 to 95% (Non-Condensing) |
|
|
| Product Ordering Information | |
|---|---|
| Standard Package | |
| Part No.: SD.ES100-1113-000 |
• 6 GbE-Port and 1 Gb SFP Port Unmanaged PoE Switch • AC Power Cord |
