Last Updated: IOn Jul 19, 2025
The MES100-10P is an entry-level PoE switch with 8 ports supporting 10/100/1000Base-T PoE+ and 2 x 1000Base-X SFP ports. Its PoE+ ports deliver power and data to connected devices, simplifying installation and upkeep. Designed for small to medium-sized networks, this switch combines ease of use with key management features. It supports VLAN and port isolation for network segmentation and security. Additionally, port-based QoS and bandwidth control enable resource allocation for critical applications, enhancing traffic management.

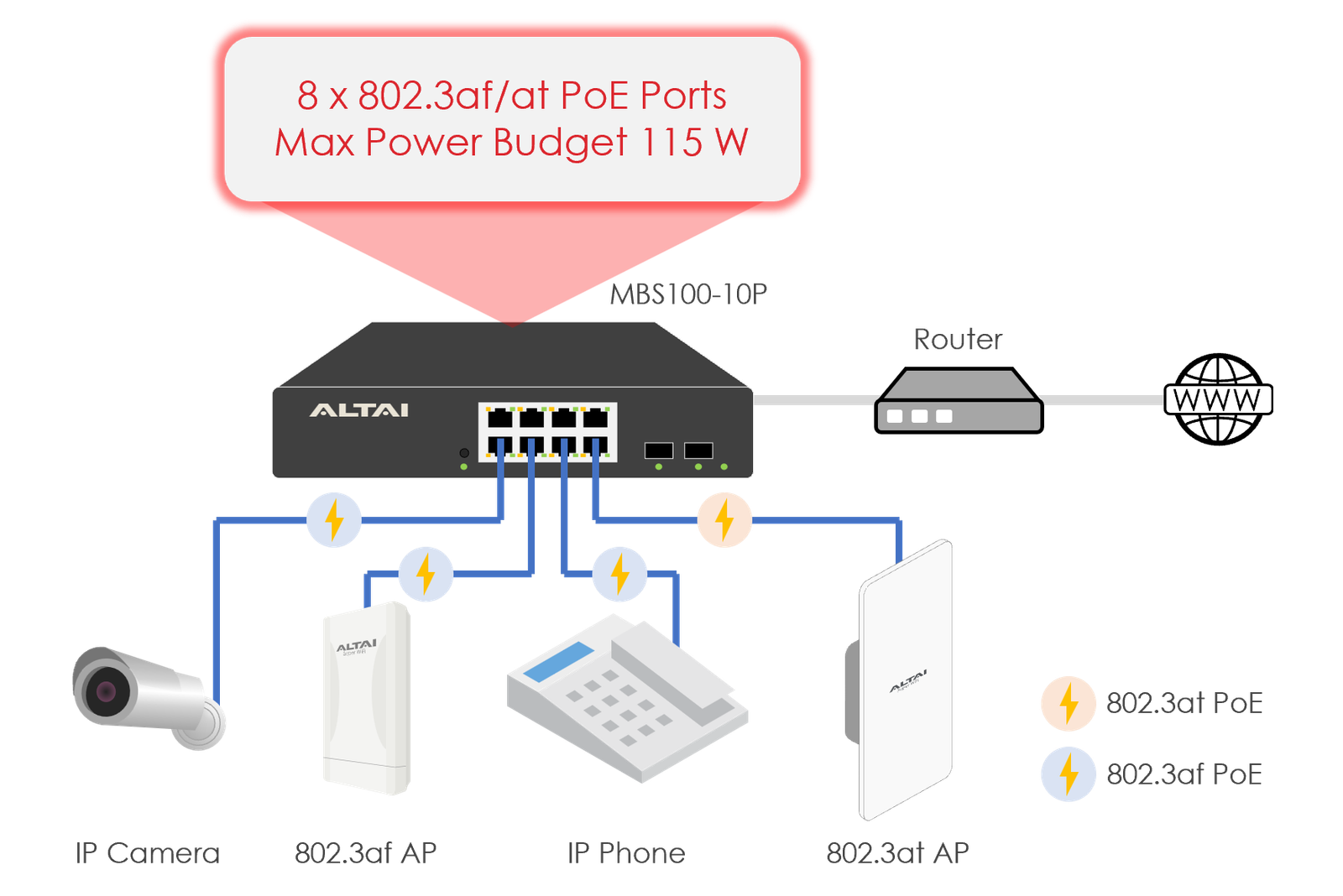

The MES100-10P supports 802.3af/at Power over Ethernet to provide 115 watts of total power budget, along with data, to remote devices over a standard twisted-pair Ethernet cable. It supports eight 1GbE PoE ports, each delivering 30W max of power.

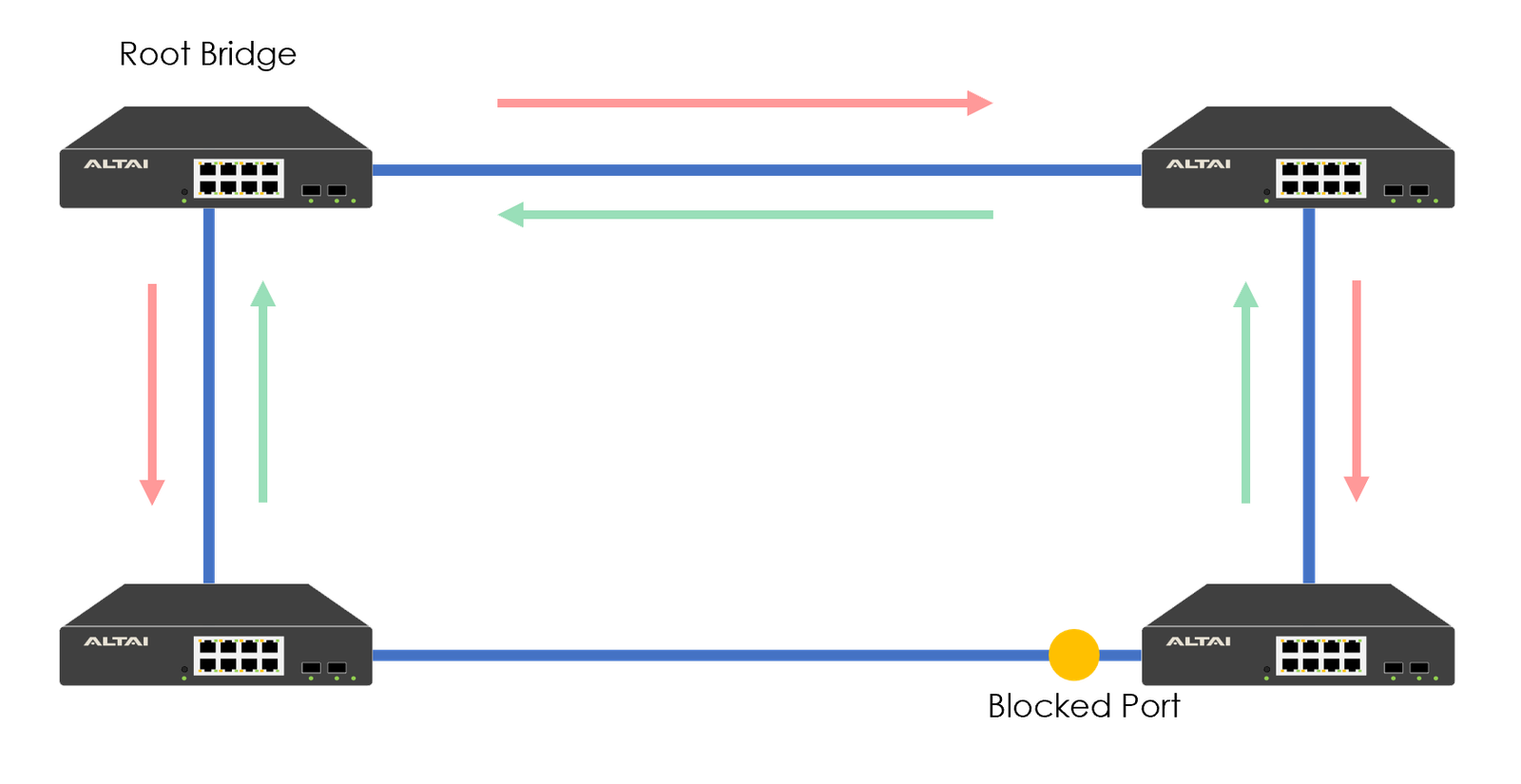

The MES100-10P supports Spanning Tree Protocols (STP/RSTP) to ensure a loop-free network environment. It detects link failures and restores connections within seconds, enhancing network reliability and resiliency.

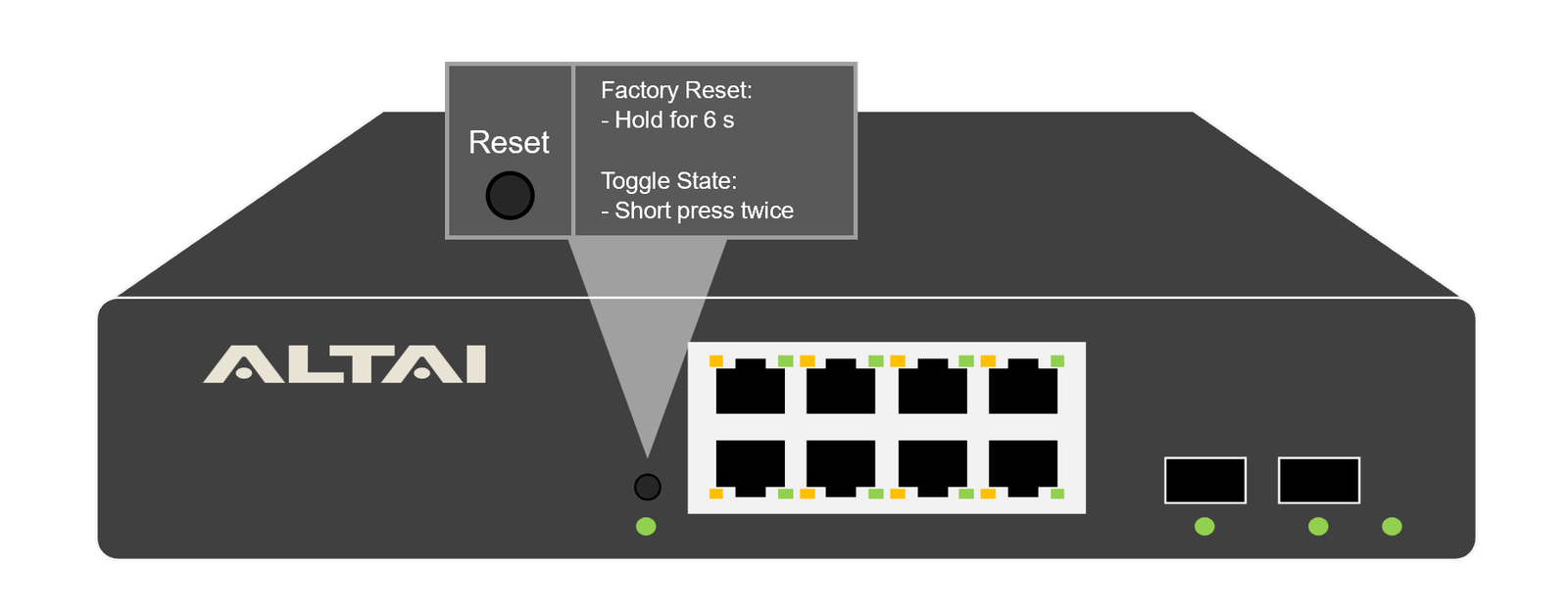

The switch’s reset button features 2 functions. For factory resetting the switch, press and hold the button for 6 seconds. While short pressing the button for 2 times within 6 seconds can toggle between the managed and unmanaged state. In an unmanaged state, the switch retains its configuration, but further management is disabled.
| Copper Ports | 8 x 10/100/1000 Mbps RJ-45 Ports (PoE) |
| SFP/Mini-GBIC Slots | 2 x 1 Gbps SFP Uplink Port |
| Reset Button | Onboard |
| Surge Protection | 4 kV 8/20 us |
| Enclosure | IP30 |
| Installation | Desktop/19” Rack Mount |
| LED |
Power: Green System: Green Network Link Per RJ-45 Port: Amber PoE Per RJ-45 Port: Green Link/Activity Per SFP Port: Green |
| Dimensions | 270 (L) x 181 (W) x 44.5 (H) mm |
| Net Weight | 1.3 kg |
| Input Power | Single Power Supply: AC100-240 V, 50-60 Hz, 2.0 A |
| AC Connector | IEC-320 C14 |
| Power Consumption |
Max. 5 W (Without PoE) Max. 120 W (With PoE) |
| Architecture | Store and Forward |
| Switching Capacity | 20 Gbps (Non-Blocking) |
| Packet Forwarding Rate | 14.88 Mpps @ 64 Byte |
| MAC Address Table | 4 K |
| Buffer Memory | 2 MB |
| Jumbo Frame | 9.2 KB |
| Standards | IEEE 802.3af/at |
| PoE Ports | Port 1 to 8 |
| PoE Management | PoE Output On/Off Control Per Port |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Max. Power Per Port | 30 W |
| Total Power Budget | 115 W |
| VLAN | 802.1Q (Access and Trunk, 4K) |
| DHCP | DHCP Client |
| Link Aggregation | Static |
| QoS | Port Based Priority |
| IGMP Snooping | IGMP Snooping v1/v2 |
| Bandwidth Control | Port Based Bandwidth Control |
| Storm Control | Unicast/Multicast/Broadcast |
| Redundancy | STP/RSTP |
| Network Security | Port Isolation |
| Port Mirroring | Supported |
| Configuration Restore | Supported |
| Operating Temperature | -20 ~ +55 °C |
| Storage Temperature | -40 ~ +80 °C |
| Operating Humidity | 5 to 90% (Non-Condensing) |
| Storage Humidity | 5 to 95% (Non-Condensing) |
|
|
|
| Product Ordering Information | |
|---|---|
| Standard Package | |
| Part No.: SD.ES100-2213-000 |
• 8 GbE-Port and 2 SFP Port managed PoE Switch • AC Power Cord |
