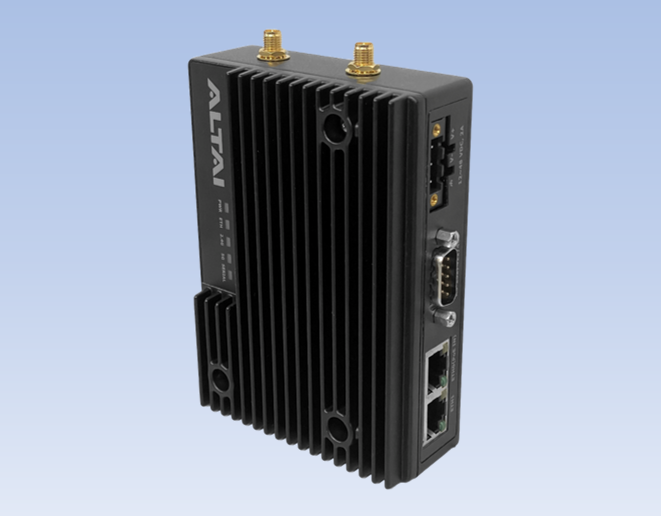

Q Link M360-X Industrial Dual-Band Wi-Fi 6 CPE/AP

The Smallest Form Factor and Highest Performance in the Class

Download

Last Updated: IOn Jul 18, 2025

The Q Link M360-X is an industrial Wi-Fi 6 client/access point that was specifically designed to meet the growing demand for industrial automation and digitization. It supports PROFINET and RS-232/422/485 serial interface, which allows I/O controllers and devices such as PLCs, meters, sensors, or actuators to communicate through the WLAN. This facilitates a transformation from traditional production lines to smart industrial OT networks.

With the rugged and compact design, along with its DIN-rail/wall mount, the M360-X can be easily integrated into various robotic systems such as AGVs, AMRs, AS/RS, and more. By leveraging Q Link’s fast roaming and AlwaysConnected technology, the M360-X ensures robust, reliable, seamless, and low-latency wireless connectivity, enabling real-time monitoring and precise control of production systems in logistics, warehousing, and manufacturing industries.

Enhanced Capacity with Wi-Fi 6 Support

Harnesses Wi-Fi 6 features such as OFDMA and bi-directional multi-user MIMO to enhance capacity on both 2.4 GHz and 5 GHz radios, ensuring superior performance.

Total Data Rate	2.976 Gbps (2.4 GHz: 574 Mbps + 5 GHz: 2402 Mbps)
Max. Concurrent Users	256 (128 for both radios)*

Compact and Rugged Design

Purpose-built for installation on AGVs, AMRs, AS/RS, or any robots, the M360-X is designed to be the smallest form factor while delivering optimal RF performance without compromise. Its rugged construction guarantees durability in challenging industrial environments.

Super Dual-Band Coverage

Max. LOS Distance (as AP)	300 m (2.4 GHz), 250 m (5 GHz)*
Max. LOS Distance (as CPE)	1.7 km to AX600-S*

Serial to Wireless LAN Device Server

Provides an RS-232/422/485 interface to enable network access to serial devices, such as PLCs, meters, sensors, or actuators, over the wireless LAN.

Seamless Roaming

Supports 802.11k/v/r and proprietary CPE roaming technologies, the M360-X enables seamless roaming for time-sensitive applications. This ensures uninterrupted connectivity and smooth handoffs between APs for improved user experience.

Multi-Link Redundancy

Provides highly reliable wireless connection and resiliency with both 2.4GHz and 5GHz links connected simultaneously through Q Link’s AlwaysConnected feature to ensure the greatest link quality and low latency for mission-critical applications.

Secure Wireless Protection

Supports WPA3 for secure Wi-Fi access, offering advanced encryption protocols to safeguard data transmission.

* The actual number of concurrent users, distance and performance vary depending on site conditions, device configurations and client capabilities.

Automated Robotics in Warehouses and Logistics
The M360-X offers reliable wireless connectivity and seamless roaming capabilities for high-mobility, mission-critical applications. Thanks to fast roaming and AlwaysConnected 1+1 link redundancy feature support, it is particularly suitable for autonomous vehicles and remote-controlled machinery.
Remote Process Control in Manufacturing and Utility Plants
The M360-X supports a serial-to-Wi-Fi device server and can be set to various operation modes, including Real COM, TCP Server, TCP Client, UDP Server, and UDP Client. This enables serial devices, including PLCs and meters , to communicate with IP/TCP network devices over the air, facilitating remote monitoring and management of the manufacturing process.

Wireless Interfaces
2.4 GHz (2x2:2) Radio
Operating Mode	AP/CPE (STA)/Repeater ^#
Standard	IEEE 802.11b/g/n/ax
Maximum Data Rate	574 Mbps
Operating Frequency ^†	2.400 – 2.484 GHz (Ch 1-13)
Channel Bandwidth	20/40 MHz
Transmit Power ^†	21 dBm (Max.), 18 dBm (Per Chain) Adjustable in 1 dB step
Receiver Sensitivity (Typical, per chain)	802.11b: 1 Mbps: -95 dBm; 11 Mbps: -88 dBm 802.11g: 6 Mbps: -91 dBm; 54 Mbps: -75 dBm 802.11n HT20: MCS0: -92 dBm; MCS7: -74 dBm 802.11n HT40: MCS0: -89 dBm; MCS7: -71 dBm 802.11ax HE20: MCS0: -92 dBm; MCS11: -63 dBm 802.11ax HE40: MCS0: -89 dBm; MCS11: -61 dBm
5 GHz (2x2:2) Radio
Operating Mode	AP/CPE (STA)/Repeater ^#
Standard	IEEE 802.11a/n/ac/ax
Maximum Data Rate	2402 Mbps
Operating Frequency ^†	5.150 – 5.250 GHz (Ch 36-48) 5.250 – 5.350 GHz (Ch 52-64) 5.470 – 5.725 GHz (Ch 100-140) 5.725 – 5.850 GHz (Ch 149-165)
Channel Bandwidth	20/40/80/160 MHz
Transmit Power ^†	27 dBm (Max.), 24 dBm (Per Chain) Adjustable in 1 dB step
Receiver Sensitivity (Typical, per chain)	802.11a: 6 Mbps: -89 dBm; 54 Mbps: -72 dBm 802.11n HT20: MCS0: -89 dBm; MCS7: -72 dBm 802.11n HT40: MCS0: -87 dBm; MCS7: -69 dBm 802.11ac VHT20: MCS0: -89 dBm; MCS9: -67 dBm 802.11ac VHT40: MCS0: -87 dBm; MCS9: -64 dBm 802.11ac VHT80: MCS0: -82 dBm; MCS9: -60 dBm 802.11ac VHT160: MCS0: -80 dBm; MCS11: -55 dBm 802.11ax HE20: MCS0: -88 dBm; MCS11: -60 dBm 802.11ax HE40: MCS0: -87 dBm; MCS11: -58 dBm 802.11ax HE80: MCS0: -82 dBm; MCS11: -53 dBm 802.11ax HE160: MCS0: -80 dBm; MCS11: -52 dBm
Other Radio Specifications
20 SSID (10 SSID per Radio) by default, expandable to 32 SSID Hidden SSID in Beacons Client Association Control per SSID by SNR and Data Rate Bandwidth Control Per SSID/Client Auto channel Selection and Interference Mitigation Suite Dynamic Frequency Selection (DFS) in 5 GHz spectrum Band Steering ^# Multi-AP Steering and Stickiness Optimization (802.11k/v) ^# Fast Roaming (802.11r) QoS: 802.11e (WMM) Dual-Radio and 1+N Redundancy ^#
Antennas
Antenna Type	External, Dual-Band 3 dBi Omni
Connector Type	2 x RP-SMA Female
Frequency Range	2.4 – 2.5 GHz, and 5.150 – 5.875 GHz
Serial Interface
Operation Modes	Real COM, TCP Server, TCP Client, UDP Server, UDP Client
Networking
Switch/Gateway Mode IPv4/IPv6 Dual-Stack NAT DHCP Client/Server PPPoE Client ^# VLAN per SSID/VLAN per User (Dynamic VLAN)/VLAN Pooling Multicast Rate Filter/IGMP Snooping MAC Clone ^#
Security
Authentication – Open, Shared key, WPA/WPA2/WPA3 (Personal/Enterprise), 802.1X (EAP-PEAP/TLS/TTLS/SIM/AKA) Encryption – WEP, TKIP, AES Management Frame Protection (802.11w) Inter/Intra-SSID Client Isolation MAC-based Access Control (White/Black List) RADIUS Multiple PSK External Captive Portal Trusted IP Management Access WIDS/WIPS ^# Check Point Nano Agent
Management
Management Platforms: Standalone, Q LinkGate, Q LinkCare Cloud, AtlaiCare On-Premises, Insights SNMP v1/v2c /v3 MIB2/IF-MIB/Q Link Enterprise MIB Syslog Remote Factory Reset ^#
Physical Specifications
Dimension	87 x 119 x 34 mm
Weight	410 g (Without Mounting Kit and Antenna)
Mounting	DIN Rail Mount or Wall Mount
Network Interface	1 x 10/100/1000Mbps RJ-45 Port (PoE In) 1 x 10/100/1000Mbps RJ-45 Port
Serial Interface	1 x RS-232 / RS-422 / RS-485 (DB9 Male)
Indicator	1 x Power Status 1 x Ethernet Interface Status 2 x Radio Interface Status 1 x Serial Interface Status
Reset Button	Onboard
Power
Power Supply ^‡	12 – 48 V DC Terminal Block, or Passive 24 – 56 VDC PoE PD
Power Consumption	18 W (Max.)
Environmental Specifications
Operating Temperature	-40 °C to +60 °C (Ambient)
Storage Temperature	-50 °C to +75 °C
Humidity	5% – 90% (Non-Condensing)
Lightning Protection	EN 61000-4-5
Weatherproof	IP30 Compliant
Vibration Protection	IEC 60068-2-6
Certifications
FCC/CE/Others RoHS2 Compliance
Warranty
1-Year Limited Hardware Warranty

Product Ordering Information
Standard Package
Part No.: SD.M360-3241-000	• M360-X Wi-Fi 6 industrial dual-band 2x2 CPE/AP (Model No.: M360-X) • Standard DIN rail and wall mount Kit
Part No.: SD.M360-3241-001	• M360-X Wi-Fi 6 industrial dual-band 2x2 CPE/AP (Model No.: M360-X) • Standard DIN rail and wall mount Kit • Dual-band 3 dBi omni antenna
Optional Accessories
Part No.: SD.PE-0001-EP	• Indoor 54 VDC 1 gigabit passive PoE injector
Warranty Extension
Part No.: SV.HW-M3602-00	• 2nd Year Extended H/W Warranty for M360-X
Part No.: SV.HW-M3603-00	• 3rd Year Extended H/W Warranty for M360-X
Part No.: SV.HW-M3604-00	• 4th Year Extended H/W Warranty for M360-X
Part No.: SV.HW-M3605-00	• 5th Year Extended H/W Warranty for M360-X
